#include <core/Config.hpp>
#include <core/Typedefs.hpp>
#include <core/string/String.hpp>

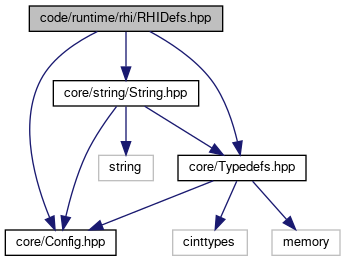

Include dependency graph for RHIDefs.hpp:

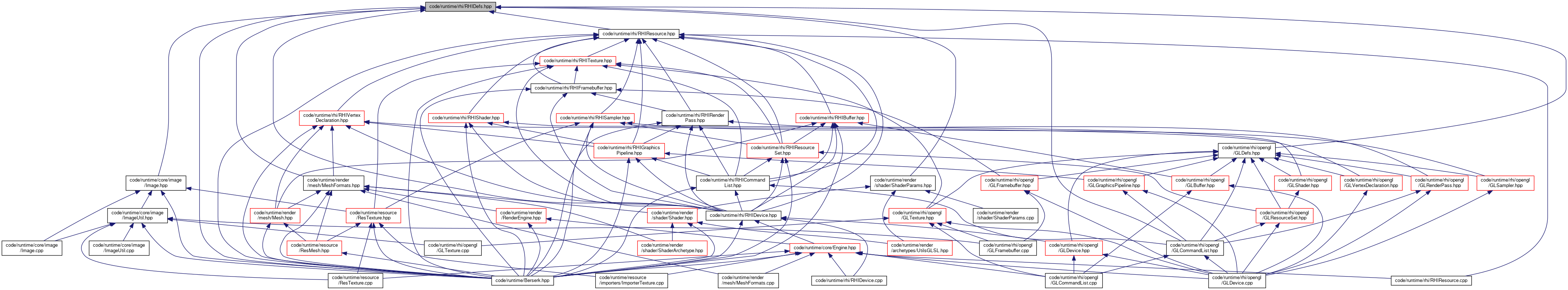

This graph shows which files directly or indirectly include this file:

Classes
struct	RHILimits
	RHI common device limits. More...

struct	RHIDeviceCaps
	RHI device capabilities. More...

Enumerations
enum class	RHIType : uint8 { OpenGL , Vulkan , Unknown }

enum class	RHIBufferUsage : uint8 { Static , Dynamic }

enum class	RHIIndexType : uint8 { Uint32 , Uint16 , Unknown }

enum class	RHIVertexFrequency : uint8 { PerVertex = 0 , PerInstance }

enum class	RHIVertexElementType : uint8 { Float1 = 0 , Float2 , Float3 , Float4 , Int1 , Int2 , Int3 , Int4 , Unknown }

enum class	RHIShaderDataType : uint8 { Float1 , Float2 , Float3 , Float4 , Int1 , Int2 , Int3 , Int4 , Uint1 , Uint2 , Uint3 , Uint4 , Bool1 , Bool2 , Bool3 , Bool4 , Mat2 , Mat3 , Mat4 , Unknown }

enum class	RHIShaderParamType : uint8 { Sampler2d , Sampler2dArray , Sampler3d , SamplerCube , Unknown }

enum class	RHITextureType : uint8 { Texture2d , Texture2dArray , Texture3d , TextureCube , Unknown }

enum class	RHIShaderType : uint8 { Vertex = 0 , Fragment = 1 }

enum class	RHIShaderLanguage : uint8 { GLSL410GL = 1 , GLSL450GL = 2 , GLSL450VK = 3 , Unknown }

enum class	RHITextureFormat : uint8 { R8 , R8_SNORM , R16 , R16_SNORM , RG8 , RG8_SNORM , RG16 , RG16_SNORM , RGB8 , RGB8_SNORM , RGB16_SNORM , RGBA8 , RGBA8_SNORM , RGBA16 , SRGB8 , SRGB8_ALPHA8 , R16F , RG16F , RGB16F , RGBA16F , R32F , RG32F , RGB32F , RGBA32F , DEPTH32F , DEPTH32F_STENCIL8 , DEPTH24_STENCIL8 , Unknown }

enum class	RHITextureUsage : uint8 { Sampling = 1 , ColorAttachment = 2 , DepthAttachment = 3 , DepthStencilAttachment = 4 }

enum class	RHITextureCubemapFace : uint8 { PositiveX = 0 , NegativeX = 1 , PositiveY = 2 , NegativeY = 3 , PositiveZ = 4 , NegativeZ = 5 }

enum class	RHISamplerMagFilter : uint8 { Nearest , Linear }

enum class	RHISamplerMinFilter : uint8 { Nearest , Linear , NearestMipmapNearest , LinearMipmapNearest , NearestMipmapLinear , LinearMipmapLinear }

enum class	RHISamplerRepeatMode : uint8 { Repeat , MirroredRepeat , ClampToEdge , ClampToBorder , MirrorClamToEdge }

enum class	RHISamplerBorderColor : uint8 { Black , White }

enum class	RHIPrimitivesType : uint8 { Triangles , Lines , Points }

enum class	RHIPolygonMode : uint8 { Fill , Line , Point }

enum class	RHIPolygonCullMode : uint8 { Disabled , Front , Back , FrontAndBack }

enum class	RHIPolygonFrontFace : uint8 { Clockwise , CounterClockwise }

enum class	RHICompareFunction : uint8 { Never , Less , Equal , LessEqual , Greater , GreaterEqual , NotEqual , Always }

enum class	RHIOperation : uint8 { Keep , Zero , Replace , Increment , Decrement , Invert }

enum class	RHIBlendFactor : uint8 { Zero , One , SrcColor , OneMinusSrcColor , DstColor , OneMinusDstColor , SrcAlpha , OneMinusSrcAlpha , DstAlpha , OneMinusDstAlpha }

enum class	RHIBlendOperation : uint8 { Add , Subtract , ReverseSubtract , Min , Max }

enum class	RHIRenderTargetOption : uint8 { ClearStore , ClearDiscard , LoadStore , LoadDiscard , DiscardStore , DiscardDiscard }

Functions
uint32	GetRHIShaderDataTypeSize (RHIShaderDataType type)

const char *	RHIGetShaderDataIdGLSL (RHIShaderDataType type)

const char *	RHIGetShaderParamIdGLSL (RHIShaderParamType type)

bool	RHIIsIntegralBaseType (RHIShaderDataType type)

bool	RHIIsFloatBaseType (RHIShaderDataType type)

bool	RHIIsIntegralBaseSignedType (RHIShaderDataType type)

bool	RHIIsVectorType (RHIShaderDataType type)

uint32	RHIGetVectorComponentsCount (RHIShaderDataType type)

uint32	RHIGetBaseElementsCount (RHIShaderDataType type)

void	RHIGetMatrixSize (RHIShaderDataType type, uint32 &rows, uint32 &cols)

RHIShaderLanguage	RHIParseShaderLanguage (const char *language)

uint32	RHIGetIndexSize (RHIIndexType type)
