Joystick Class Reference

Joystick (gamepad) device state. More...

#include <InputDevices.hpp>

Inheritance diagram for Joystick:

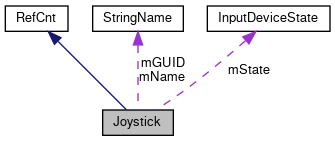

Collaboration diagram for Joystick:

Public Member Functions
BRK_API	~Joystick () override=default
const StringName &	GetName () const
const StringName &	GetGUID () const
InputDeviceState	GetState () const
const std::vector< float > &	GetAxesStates () const
const std::vector< InputAction > &	GetButtonsStates () const
Public Member Functions inherited from RefCnt
virtual	~RefCnt ()
bool	IsUnique () const
std::int32_t	GetRefs () const
std::int32_t	AddRef () const
std::int32_t	RelRef () const

Static Public Attributes
static const uint32	MAX_BUTTONS = 20
static const uint32	MAX_AXES = 10

Protected Attributes
StringName	mName
StringName	mGUID
InputDeviceState	mState
std::vector< float >	mAxes
std::vector< InputAction >	mButtons

Additional Inherited Members
Protected Member Functions inherited from RefCnt
virtual void	Destroy () const

Detailed Description

Joystick (gamepad) device state.

Constructor & Destructor Documentation

~Joystick()

BRK_API Joystick::~Joystick ( )

overridedefault

Member Function Documentation

GetAxesStates()

const std::vector<float>& Joystick::GetAxesStates ( ) const

inline

Returns

Current states of device axes

GetButtonsStates()

const std::vector<InputAction>& Joystick::GetButtonsStates ( ) const

inline

Returns

Current states of device buttons

GetGUID()

const StringName& Joystick::GetGUID ( ) const

inline

Returns

Name guid this device

GetName()

const StringName& Joystick::GetName ( ) const

inline

Returns

Name of this device

GetState()

InputDeviceState Joystick::GetState ( ) const

inline

Returns

Current device state

Member Data Documentation

MAX_AXES

const uint32 Joystick::MAX_AXES = 10

static

MAX_BUTTONS

const uint32 Joystick::MAX_BUTTONS = 20

static

mAxes

std::vector<float> Joystick::mAxes

protected

mButtons

std::vector<InputAction> Joystick::mButtons

protected

mGUID

StringName Joystick::mGUID

protected

mName

StringName Joystick::mName

protected

mState

InputDeviceState Joystick::mState

protected

---

The documentation for this class was generated from the following file:

• code/runtime/platform/InputDevices.hpp
