GL device implementation. More...

#include <GLDevice.hpp>

Inheritance diagram for GLDevice:

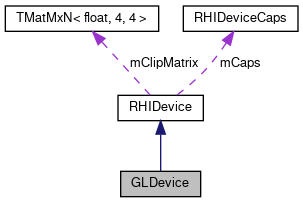

Collaboration diagram for GLDevice:

[legend]

Public Types
using	MakeContextCurrentFunc = std::function< void(const Ref< Window > &)>

using	SwapBuffersFunc = std::function< void(const Ref< Window > &)>

Public Member Functions
BRK_API	GLDevice (MakeContextCurrentFunc makeCurrentFunc, SwapBuffersFunc swapBuffersFunc)

BRK_API	~GLDevice () override

BRK_API Ref< RHIVertexDeclaration >	CreateVertexDeclaration (const RHIVertexDeclarationDesc &desc) override

BRK_API Ref< RHIVertexBuffer >	CreateVertexBuffer (const RHIBufferDesc &desc) override

BRK_API Ref< RHIIndexBuffer >	CreateIndexBuffer (const RHIBufferDesc &desc) override

BRK_API Ref< RHIUniformBuffer >	CreateUniformBuffer (const RHIBufferDesc &desc) override

BRK_API Ref< RHISampler >	CreateSampler (const RHISamplerDesc &desc) override

BRK_API Ref< RHITexture >	CreateTexture (const RHITextureDesc &desc) override

BRK_API Ref< RHIResourceSet >	CreateResourceSet (const RHIResourceSetDesc &desc) override

BRK_API Ref< RHIFramebuffer >	CreateFramebuffer (const RHIFramebufferDesc &desc) override

BRK_API Ref< RHIShader >	CreateShader (const RHIShaderDesc &desc) override

BRK_API Ref< RHIRenderPass >	CreateRenderPass (const RHIRenderPassDesc &desc) override

BRK_API Ref< RHIGraphicsPipeline >	CreateGraphicsPipeline (const RHIGraphicsPipelineDesc &desc) override

BRK_API Ref< RHICommandList >	GetCoreCommandList () override

BRK_API void	UpdateResourceSet_RT (const Ref< RHIResourceSet > &set, const RHIResourceSetDesc &desc) override

BRK_API MakeContextCurrentFunc &	GetContextFunc ()

BRK_API SwapBuffersFunc &	GetSwapFunc ()

Public Member Functions inherited from RHIDevice
virtual BRK_API	~RHIDevice ()=default

virtual BRK_API void	UpdateVertexBuffer (const Ref< RHIVertexBuffer > &buffer, uint32 byteOffset, uint32 byteSize, const Ref< Data > &data)

virtual BRK_API void	UpdateIndexBuffer (const Ref< RHIIndexBuffer > &buffer, uint32 byteOffset, uint32 byteSize, const Ref< Data > &data)

virtual BRK_API void	UpdateUniformBuffer (const Ref< RHIUniformBuffer > &buffer, uint32 byteOffset, uint32 byteSize, const Ref< Data > &data)

virtual BRK_API void	UpdateTexture2D (const Ref< RHITexture > &texture, uint32 mipLevel, const Rect2u &region, const Ref< Data > &data)

virtual BRK_API void	UpdateTexture2DArray (const Ref< RHITexture > &texture, uint32 arrayIndex, uint32 mipLevel, const Rect2u &region, const Ref< Data > &data)

virtual BRK_API void	UpdateTextureCube (const Ref< RHITexture > &texture, RHITextureCubemapFace face, uint32 mipLevel, const Rect2u &region, const Ref< Data > &data)

virtual BRK_API void	UpdateResourceSet (const Ref< RHIResourceSet > &set, const RHIResourceSetDesc &desc)

virtual BRK_API void	GenerateMipMaps (const Ref< RHITexture > &texture)

virtual BRK_API const std::vector< RHITextureFormat > &	GetSupportedFormats () const

virtual BRK_API const std::vector< RHIShaderLanguage > &	GetSupportedShaderLanguages () const

virtual BRK_API RHIType	GetDriverType () const

virtual BRK_API const RHIDeviceCaps &	GetCaps () const

virtual BRK_API const Mat4x4f &	GetClipMatrix () const

BRK_API bool	IsSupported (RHIShaderLanguage language) const

Static Public Member Functions
static BRK_API std::shared_ptr< GLDevice >	Make (MakeContextCurrentFunc makeCurrentFunc, SwapBuffersFunc swapBuffersFunc)
	CreateFromImage GL RHI device. More...

Additional Inherited Members
Protected Attributes inherited from RHIDevice
std::vector< RHITextureFormat >	mSupportedTextureFormats

std::vector< RHIShaderLanguage >	mSupportedShaderLanguages

RHIDeviceCaps	mCaps

Mat4x4f	mClipMatrix

RHIType	mType

Detailed Description

GL device implementation.

Member Typedef Documentation

◆ MakeContextCurrentFunc

using GLDevice::MakeContextCurrentFunc = std::function<void(const Ref<Window> &)>

◆ SwapBuffersFunc

using GLDevice::SwapBuffersFunc = std::function<void(const Ref<Window> &)>

Constructor & Destructor Documentation

◆ GLDevice()

GLDevice::GLDevice	(	MakeContextCurrentFunc	makeCurrentFunc,
		SwapBuffersFunc	swapBuffersFunc
	)

explicit

◆ ~GLDevice()

GLDevice::~GLDevice ( )

override

Member Function Documentation

◆ CreateFramebuffer()

Ref< RHIFramebuffer > GLDevice::CreateFramebuffer ( const RHIFramebufferDesc & desc )

overridevirtual

Returns: CreateFromImage framebuffer from desc

Implements RHIDevice.

◆ CreateGraphicsPipeline()

Ref< RHIGraphicsPipeline > GLDevice::CreateGraphicsPipeline ( const RHIGraphicsPipelineDesc & desc )

overridevirtual

Returns: CreateFromImage and compile pipeline from desc

Implements RHIDevice.

◆ CreateIndexBuffer()

Ref< RHIIndexBuffer > GLDevice::CreateIndexBuffer ( const RHIBufferDesc & desc )

overridevirtual

Returns: CreateFromImage vertex buffer from desc

Implements RHIDevice.

◆ CreateRenderPass()

Ref< RHIRenderPass > GLDevice::CreateRenderPass ( const RHIRenderPassDesc & desc )

overridevirtual

Returns: CreateFromImage render pass from desc

Implements RHIDevice.

◆ CreateResourceSet()

Ref< RHIResourceSet > GLDevice::CreateResourceSet ( const RHIResourceSetDesc & desc )

overridevirtual

Returns: CreateFromImage resource set from desc

Implements RHIDevice.

◆ CreateSampler()

Ref< RHISampler > GLDevice::CreateSampler ( const RHISamplerDesc & desc )

overridevirtual

Returns: CreateFromImage sampler object from desc

Implements RHIDevice.

◆ CreateShader()

Ref< RHIShader > GLDevice::CreateShader ( const RHIShaderDesc & desc )

overridevirtual

Returns: CreateFromImage and compile shader from desc

Implements RHIDevice.

◆ CreateTexture()

Ref< RHITexture > GLDevice::CreateTexture ( const RHITextureDesc & desc )

overridevirtual

Returns: CreateFromImage texture from desc

Implements RHIDevice.

◆ CreateUniformBuffer()

Ref< RHIUniformBuffer > GLDevice::CreateUniformBuffer ( const RHIBufferDesc & desc )

overridevirtual

Returns: CreateFromImage vertex buffer from desc

Implements RHIDevice.

◆ CreateVertexBuffer()

Ref< RHIVertexBuffer > GLDevice::CreateVertexBuffer ( const RHIBufferDesc & desc )

overridevirtual

Returns: CreateFromImage vertex buffer from desc

Implements RHIDevice.

◆ CreateVertexDeclaration()

Ref< RHIVertexDeclaration > GLDevice::CreateVertexDeclaration ( const RHIVertexDeclarationDesc & desc )

overridevirtual

Returns: CreateFromImage vertex declaration from desc

Implements RHIDevice.

◆ GetContextFunc()

GLDevice::MakeContextCurrentFunc & GLDevice::GetContextFunc ( )

◆ GetCoreCommandList()

Ref< RHICommandList > GLDevice::GetCoreCommandList ( )

overridevirtual

Returns: Core command list for commands capturing

Implements RHIDevice.

◆ GetSwapFunc()

GLDevice::SwapBuffersFunc & GLDevice::GetSwapFunc ( )

◆ Make()

std::shared_ptr< GLDevice > GLDevice::Make	(	MakeContextCurrentFunc	makeCurrentFunc,
		SwapBuffersFunc	swapBuffersFunc
	)

static

CreateFromImage GL RHI device.

Attempts to load and initialize GL functions and create GL RHI device.

Parameters

makeCurrentFunc	Function to bind context of the window
swapBuffersFunc	Function to swap buffers to present window image

Returns: Created device; null if failed

◆ UpdateResourceSet_RT()

void GLDevice::UpdateResourceSet_RT	(	const Ref< RHIResourceSet > &	set,
		const RHIResourceSetDesc &	desc
	)

overridevirtual

Update resource set

Implements RHIDevice.

The documentation for this class was generated from the following files:

code/runtime/rhi/opengl/GLDevice.hpp
code/runtime/rhi/opengl/GLDevice.cpp
