RHI device. More...

#include <RHIDevice.hpp>

Inheritance diagram for RHIDevice:

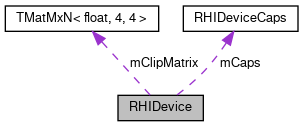

Collaboration diagram for RHIDevice:

Public Member Functions
virtual BRK_API	~RHIDevice ()=default

virtual BRK_API Ref< RHIVertexDeclaration >	CreateVertexDeclaration (const RHIVertexDeclarationDesc &desc)=0

virtual BRK_API Ref< RHIVertexBuffer >	CreateVertexBuffer (const RHIBufferDesc &desc)=0

virtual BRK_API Ref< RHIIndexBuffer >	CreateIndexBuffer (const RHIBufferDesc &desc)=0

virtual BRK_API Ref< RHIUniformBuffer >	CreateUniformBuffer (const RHIBufferDesc &desc)=0

virtual BRK_API Ref< RHISampler >	CreateSampler (const RHISamplerDesc &desc)=0

virtual BRK_API Ref< RHITexture >	CreateTexture (const RHITextureDesc &desc)=0

virtual BRK_API Ref< RHIResourceSet >	CreateResourceSet (const RHIResourceSetDesc &desc)=0

virtual BRK_API Ref< RHIFramebuffer >	CreateFramebuffer (const RHIFramebufferDesc &desc)=0

virtual BRK_API Ref< RHIShader >	CreateShader (const RHIShaderDesc &desc)=0

virtual BRK_API Ref< RHIRenderPass >	CreateRenderPass (const RHIRenderPassDesc &desc)=0

virtual BRK_API Ref< RHIGraphicsPipeline >	CreateGraphicsPipeline (const RHIGraphicsPipelineDesc &desc)=0

virtual BRK_API void	UpdateVertexBuffer (const Ref< RHIVertexBuffer > &buffer, uint32 byteOffset, uint32 byteSize, const Ref< Data > &data)

virtual BRK_API void	UpdateIndexBuffer (const Ref< RHIIndexBuffer > &buffer, uint32 byteOffset, uint32 byteSize, const Ref< Data > &data)

virtual BRK_API void	UpdateUniformBuffer (const Ref< RHIUniformBuffer > &buffer, uint32 byteOffset, uint32 byteSize, const Ref< Data > &data)

virtual BRK_API void	UpdateTexture2D (const Ref< RHITexture > &texture, uint32 mipLevel, const Rect2u &region, const Ref< Data > &data)

virtual BRK_API void	UpdateTexture2DArray (const Ref< RHITexture > &texture, uint32 arrayIndex, uint32 mipLevel, const Rect2u &region, const Ref< Data > &data)

virtual BRK_API void	UpdateTextureCube (const Ref< RHITexture > &texture, RHITextureCubemapFace face, uint32 mipLevel, const Rect2u &region, const Ref< Data > &data)

virtual BRK_API void	UpdateResourceSet (const Ref< RHIResourceSet > &set, const RHIResourceSetDesc &desc)

virtual BRK_API void	UpdateResourceSet_RT (const Ref< RHIResourceSet > &set, const RHIResourceSetDesc &desc)=0

virtual BRK_API void	GenerateMipMaps (const Ref< RHITexture > &texture)

virtual BRK_API Ref< RHICommandList >	GetCoreCommandList ()=0

virtual BRK_API const std::vector< RHITextureFormat > &	GetSupportedFormats () const

virtual BRK_API const std::vector< RHIShaderLanguage > &	GetSupportedShaderLanguages () const

virtual BRK_API RHIType	GetDriverType () const

virtual BRK_API const RHIDeviceCaps &	GetCaps () const

virtual BRK_API const Mat4x4f &	GetClipMatrix () const

BRK_API bool	IsSupported (RHIShaderLanguage language) const

Protected Attributes
std::vector< RHITextureFormat >	mSupportedTextureFormats

std::vector< RHIShaderLanguage >	mSupportedShaderLanguages

RHIDeviceCaps	mCaps

Mat4x4f	mClipMatrix

RHIType	mType

Detailed Description

RHI device.

Device object exposes common object creation api.

Device provided objects can be safely created from any thread. CreateFromImage functions immediately return the created object reference, but actual object creation on the GPU side is deferred, until the RHI execution thread reaches object creation and does it its side.

From user side, created objects can be safely and immediately used in the drawing and update api via command buffers.

Constructor & Destructor Documentation

◆ ~RHIDevice()

virtual BRK_API RHIDevice::~RHIDevice ( )

virtualdefault

Member Function Documentation

◆ CreateFramebuffer()

virtual BRK_API Ref<RHIFramebuffer> RHIDevice::CreateFramebuffer ( const RHIFramebufferDesc & desc )

pure virtual

Returns: CreateFromImage framebuffer from desc

Implemented in GLDevice.

◆ CreateGraphicsPipeline()

virtual BRK_API Ref<RHIGraphicsPipeline> RHIDevice::CreateGraphicsPipeline ( const RHIGraphicsPipelineDesc & desc )

pure virtual

Returns: CreateFromImage and compile pipeline from desc

Implemented in GLDevice.

◆ CreateIndexBuffer()

virtual BRK_API Ref<RHIIndexBuffer> RHIDevice::CreateIndexBuffer ( const RHIBufferDesc & desc )

pure virtual

Returns: CreateFromImage vertex buffer from desc

Implemented in GLDevice.

◆ CreateRenderPass()

virtual BRK_API Ref<RHIRenderPass> RHIDevice::CreateRenderPass ( const RHIRenderPassDesc & desc )

pure virtual

Returns: CreateFromImage render pass from desc

Implemented in GLDevice.

◆ CreateResourceSet()

virtual BRK_API Ref<RHIResourceSet> RHIDevice::CreateResourceSet ( const RHIResourceSetDesc & desc )

pure virtual

Returns: CreateFromImage resource set from desc

Implemented in GLDevice.

◆ CreateSampler()

virtual BRK_API Ref<RHISampler> RHIDevice::CreateSampler ( const RHISamplerDesc & desc )

pure virtual

Returns: CreateFromImage sampler object from desc

Implemented in GLDevice.

◆ CreateShader()

virtual BRK_API Ref<RHIShader> RHIDevice::CreateShader ( const RHIShaderDesc & desc )

pure virtual

Returns: CreateFromImage and compile shader from desc

Implemented in GLDevice.

◆ CreateTexture()

virtual BRK_API Ref<RHITexture> RHIDevice::CreateTexture ( const RHITextureDesc & desc )

pure virtual

Returns: CreateFromImage texture from desc

Implemented in GLDevice.

◆ CreateUniformBuffer()

virtual BRK_API Ref<RHIUniformBuffer> RHIDevice::CreateUniformBuffer ( const RHIBufferDesc & desc )

pure virtual

Returns: CreateFromImage vertex buffer from desc

Implemented in GLDevice.

◆ CreateVertexBuffer()

virtual BRK_API Ref<RHIVertexBuffer> RHIDevice::CreateVertexBuffer ( const RHIBufferDesc & desc )

pure virtual

Returns: CreateFromImage vertex buffer from desc

Implemented in GLDevice.

◆ CreateVertexDeclaration()

virtual BRK_API Ref<RHIVertexDeclaration> RHIDevice::CreateVertexDeclaration ( const RHIVertexDeclarationDesc & desc )

pure virtual

Returns: CreateFromImage vertex declaration from desc

Implemented in GLDevice.

◆ GenerateMipMaps()

void RHIDevice::GenerateMipMaps ( const Ref< RHITexture > & texture )

virtual

Generate mip maps for the texture (2d, 2d array, cube)

◆ GetCaps()

const RHIDeviceCaps & RHIDevice::GetCaps ( ) const

virtual

Returns: Device capabilities

◆ GetClipMatrix()

const Mat4x4f & RHIDevice::GetClipMatrix ( ) const

virtual

Returns: Clip matrix

◆ GetCoreCommandList()

virtual BRK_API Ref<RHICommandList> RHIDevice::GetCoreCommandList ( )

pure virtual

Returns: Core command list for commands capturing

Implemented in GLDevice.

◆ GetDriverType()

RHIType RHIDevice::GetDriverType ( ) const

virtual

Returns: Type of underlying native API

◆ GetSupportedFormats()

BRK_NS_BEGIN const std::vector< RHITextureFormat > & RHIDevice::GetSupportedFormats ( ) const

virtual

Returns: List of supported texture formats

◆ GetSupportedShaderLanguages()

const std::vector< RHIShaderLanguage > & RHIDevice::GetSupportedShaderLanguages ( ) const

virtual

Returns: List of supported source shader languages

◆ IsSupported()

bool RHIDevice::IsSupported ( RHIShaderLanguage language ) const

Returns: True if language supported

◆ UpdateIndexBuffer()

void RHIDevice::UpdateIndexBuffer	(	const Ref< RHIIndexBuffer > &	buffer,
		uint32	byteOffset,
		uint32	byteSize,
		const Ref< Data > &	data
	)

virtual

Update index buffer with data

◆ UpdateResourceSet()

void RHIDevice::UpdateResourceSet	(	const Ref< RHIResourceSet > &	set,
		const RHIResourceSetDesc &	desc
	)

virtual

Update resource set

◆ UpdateResourceSet_RT()

virtual BRK_API void RHIDevice::UpdateResourceSet_RT	(	const Ref< RHIResourceSet > &	set,
		const RHIResourceSetDesc &	desc
	)

pure virtual

Update resource set

Implemented in GLDevice.

◆ UpdateTexture2D()

void RHIDevice::UpdateTexture2D	(	const Ref< RHITexture > &	texture,
		uint32	mipLevel,
		const Rect2u &	region,
		const Ref< Data > &	data
	)

virtual

Update chosen region and mip level of 2d texture

◆ UpdateTexture2DArray()

void RHIDevice::UpdateTexture2DArray	(	const Ref< RHITexture > &	texture,
		uint32	arrayIndex,
		uint32	mipLevel,
		const Rect2u &	region,
		const Ref< Data > &	data
	)

virtual

Update chosen array index, region and mip level of 2d texture array

◆ UpdateTextureCube()

void RHIDevice::UpdateTextureCube	(	const Ref< RHITexture > &	texture,
		RHITextureCubemapFace	face,
		uint32	mipLevel,
		const Rect2u &	region,
		const Ref< Data > &	data
	)

virtual

Update chosen face, region and mip level of cube texture

◆ UpdateUniformBuffer()

void RHIDevice::UpdateUniformBuffer	(	const Ref< RHIUniformBuffer > &	buffer,
		uint32	byteOffset,
		uint32	byteSize,
		const Ref< Data > &	data
	)

virtual

Update uniform buffer with data

◆ UpdateVertexBuffer()

void RHIDevice::UpdateVertexBuffer	(	const Ref< RHIVertexBuffer > &	buffer,
		uint32	byteOffset,
		uint32	byteSize,
		const Ref< Data > &	data
	)

virtual

Update vertex buffer with data

Member Data Documentation

◆ mCaps

RHIDeviceCaps RHIDevice::mCaps

protected

◆ mClipMatrix

Mat4x4f RHIDevice::mClipMatrix

protected

◆ mSupportedShaderLanguages

std::vector<RHIShaderLanguage> RHIDevice::mSupportedShaderLanguages

protected

◆ mSupportedTextureFormats

std::vector<RHITextureFormat> RHIDevice::mSupportedTextureFormats

protected

◆ mType

RHIType RHIDevice::mType

protected

The documentation for this class was generated from the following files:

code/runtime/rhi/RHIDevice.hpp
code/runtime/rhi/RHIDevice.cpp
